Winch Plate Installation Guide

*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.

ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE WORKING IN THE SHOP.

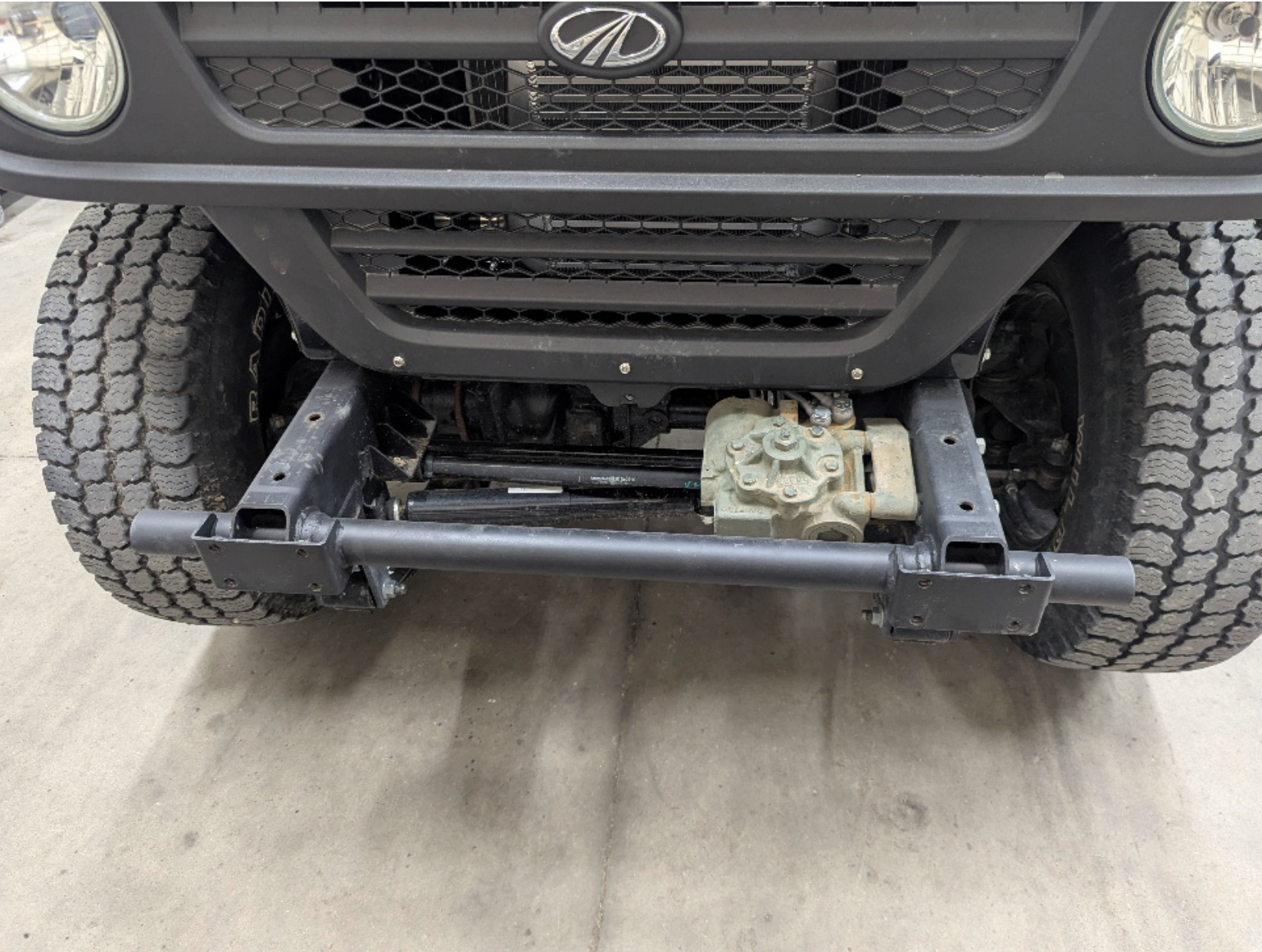

Begin by removing the front bumper and the factory blank panel.

Align the winch plate to the holes.

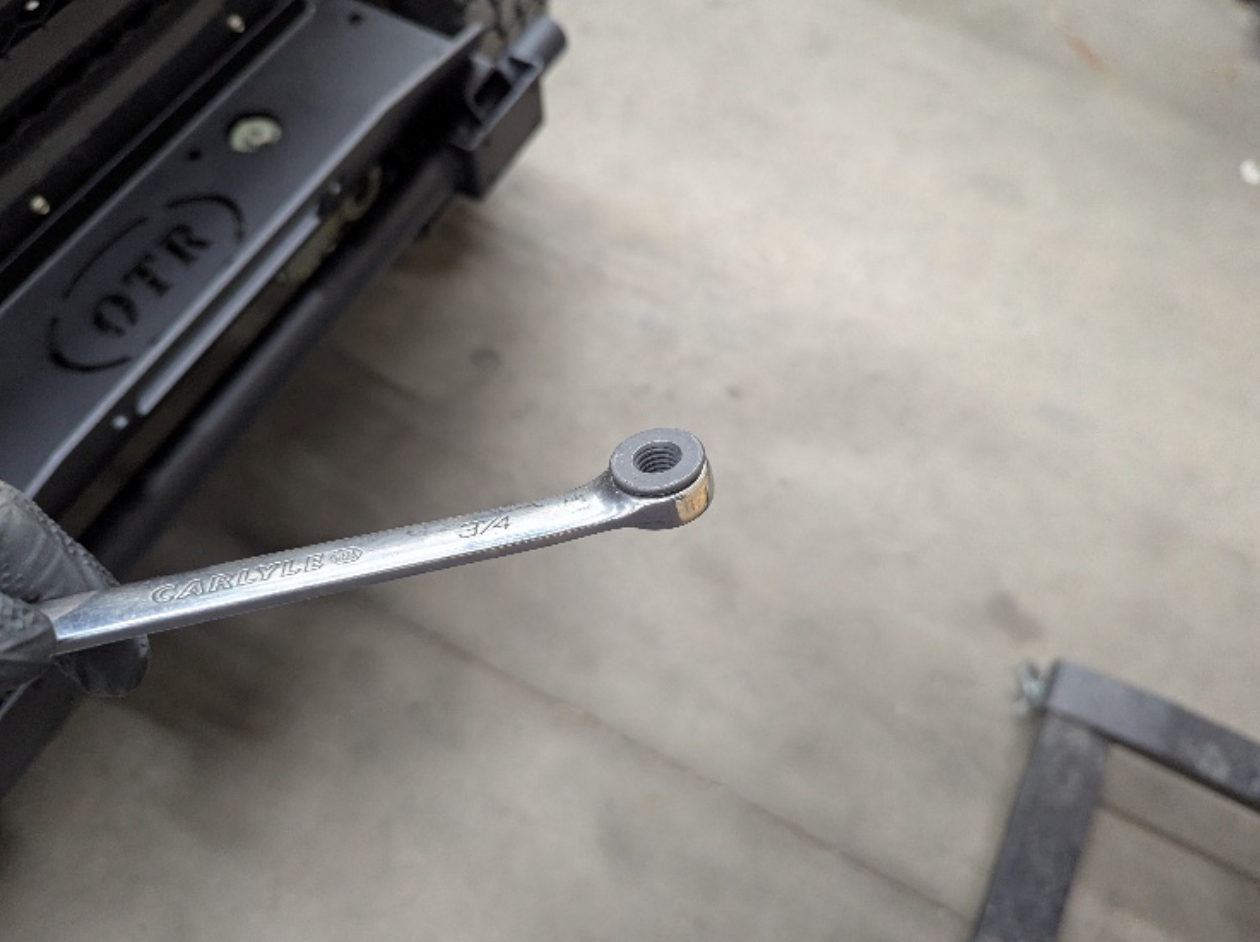

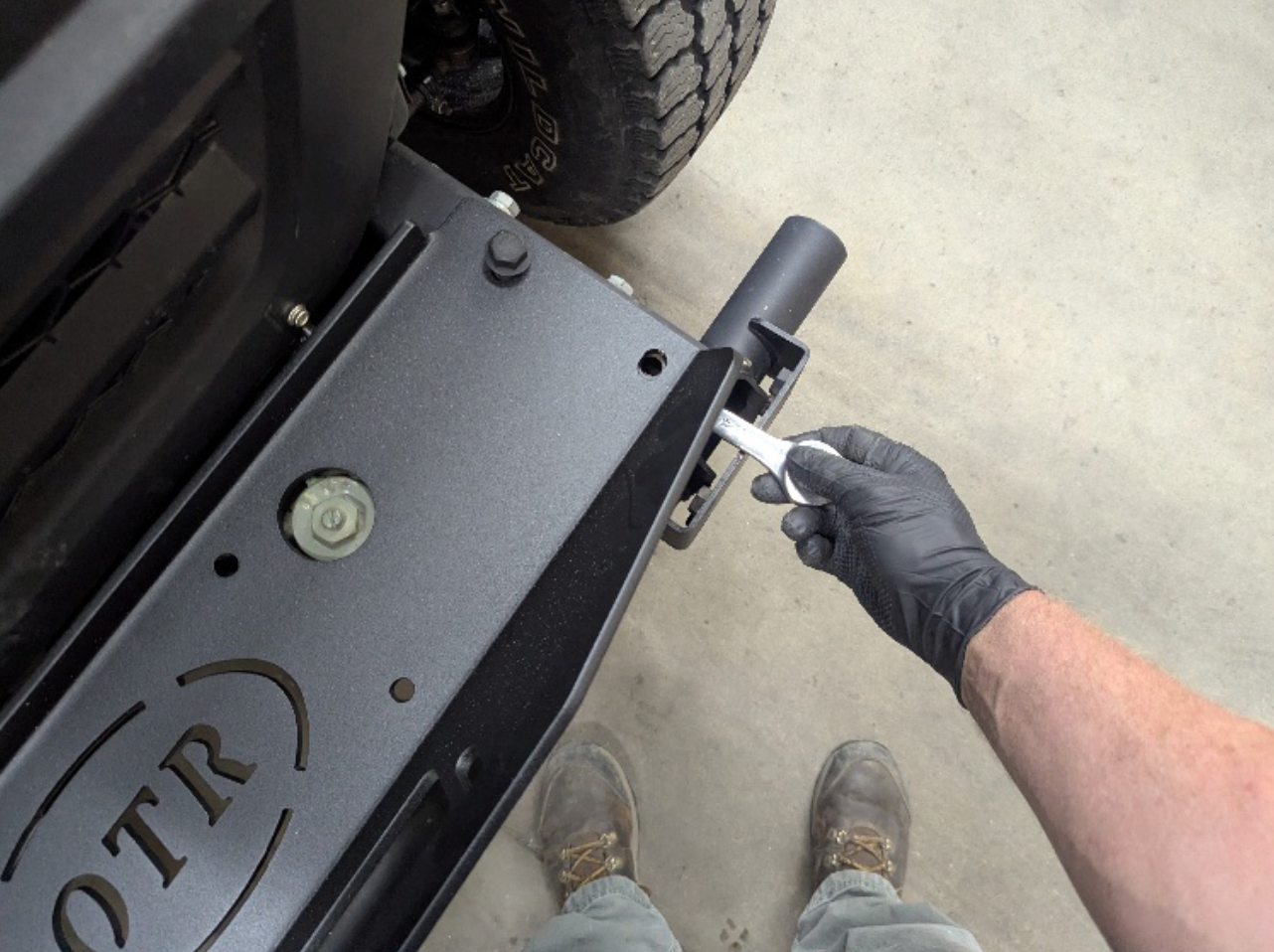

Using a ¾” box end wrench, insert a nut into the frame. Repeat on other side rear hole, tighten before moving on. Bolts can be tightened to 100 ft-lbs.

Most Popular

Bumpers, Sliders, Exterior Armor

Cargo Carriers & Trays

Doors, Tops, Enclosures, & Windshields

Engine & Performance Upgrades

Gears, Axles, & Drivetrain Upgrades

Engine & Performance Upgrades

Gears, Axles, & Drivetrain Upgrades

Grilles

Interior Accessories

Grilles

Interior Accessories

Scratch and Dent

Skid Plates & Component Armor

Suspension Upgrades

Wiring Harnesses and Lighting

2023-Current Mahindra Roxor HD 2.7L

2022 Mahindra Roxor 2.5L

2018-2020 Mahindra Roxor 2.5L

Login

Winch Plate Installation Guide

Begin by removing the front bumper and the factory blank panel.

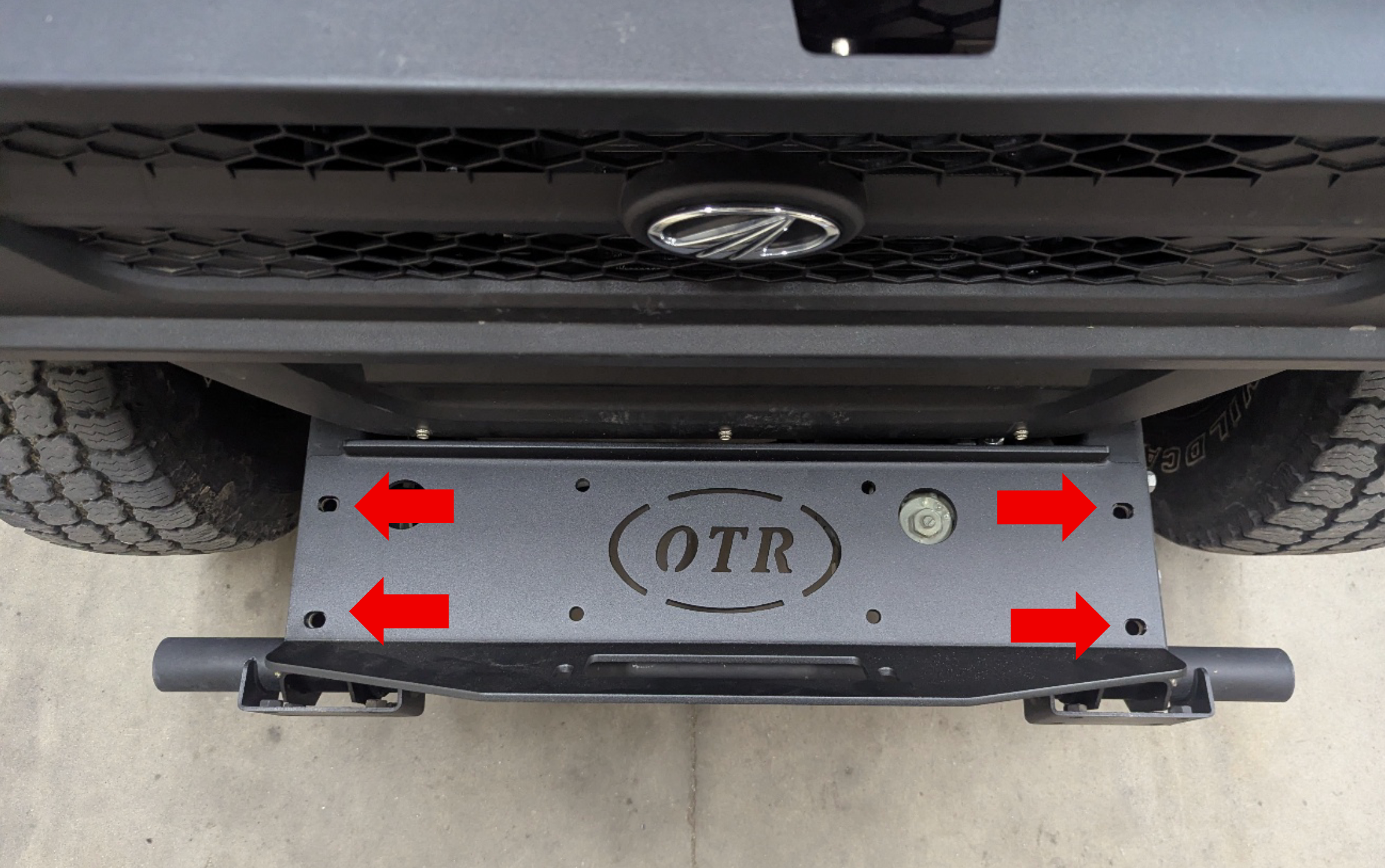

Align the winch plate to the holes.

Using a ¾” box end wrench, insert a nut into the frame. Repeat on other side rear hole, tighten before moving on. Bolts can be tightened to 100 ft-lbs.

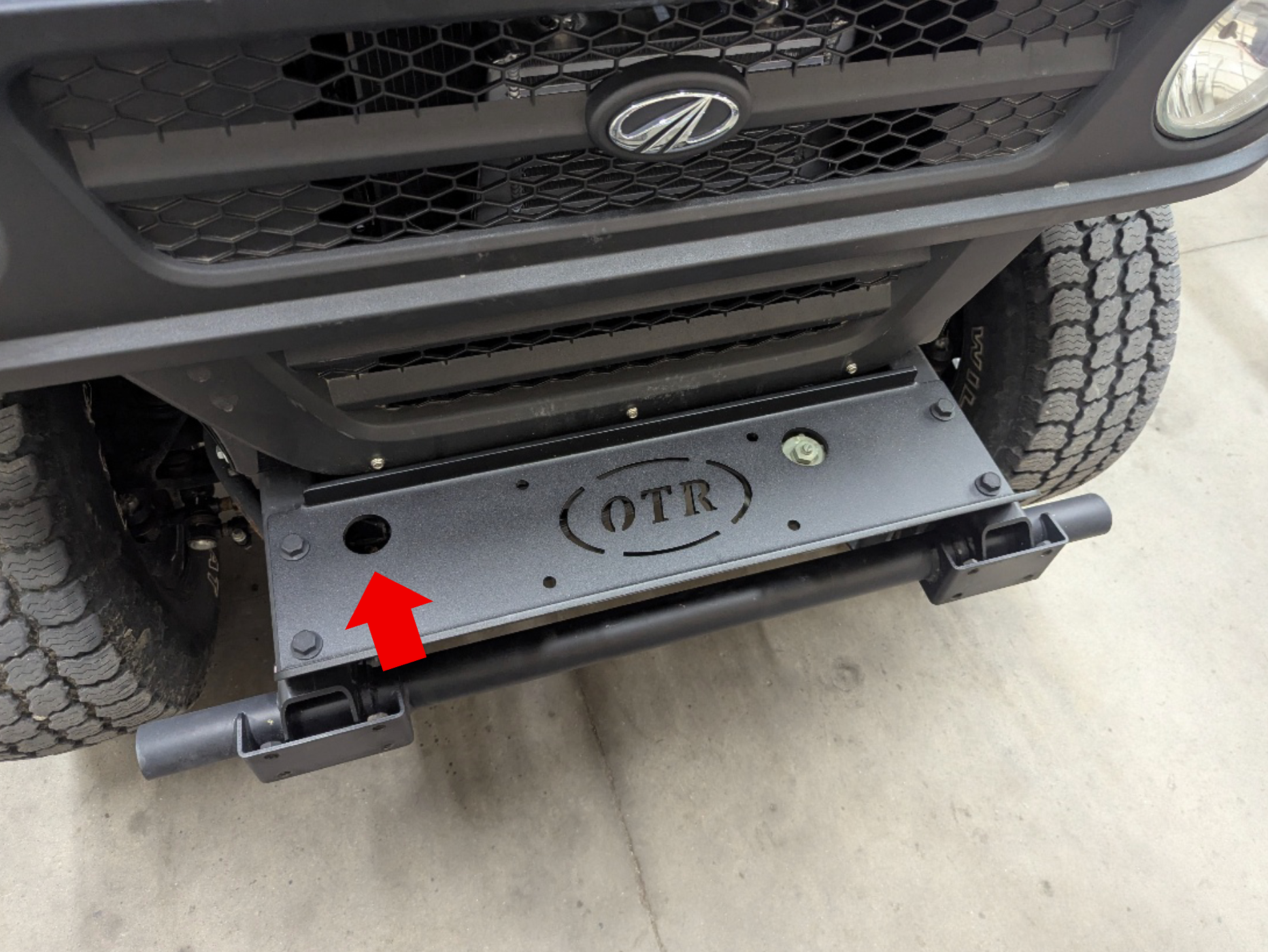

Install front bolts and tighten to 100 ft-lbs. Grommet goes on left side hole
