Rear Tube Fenders Installation Guide

Rear Tube Fenders Installation Guide

*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.

ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE WORKING IN THE SHOP.

DISCONNECT BATTERY BEFORE YOU BEGIN.

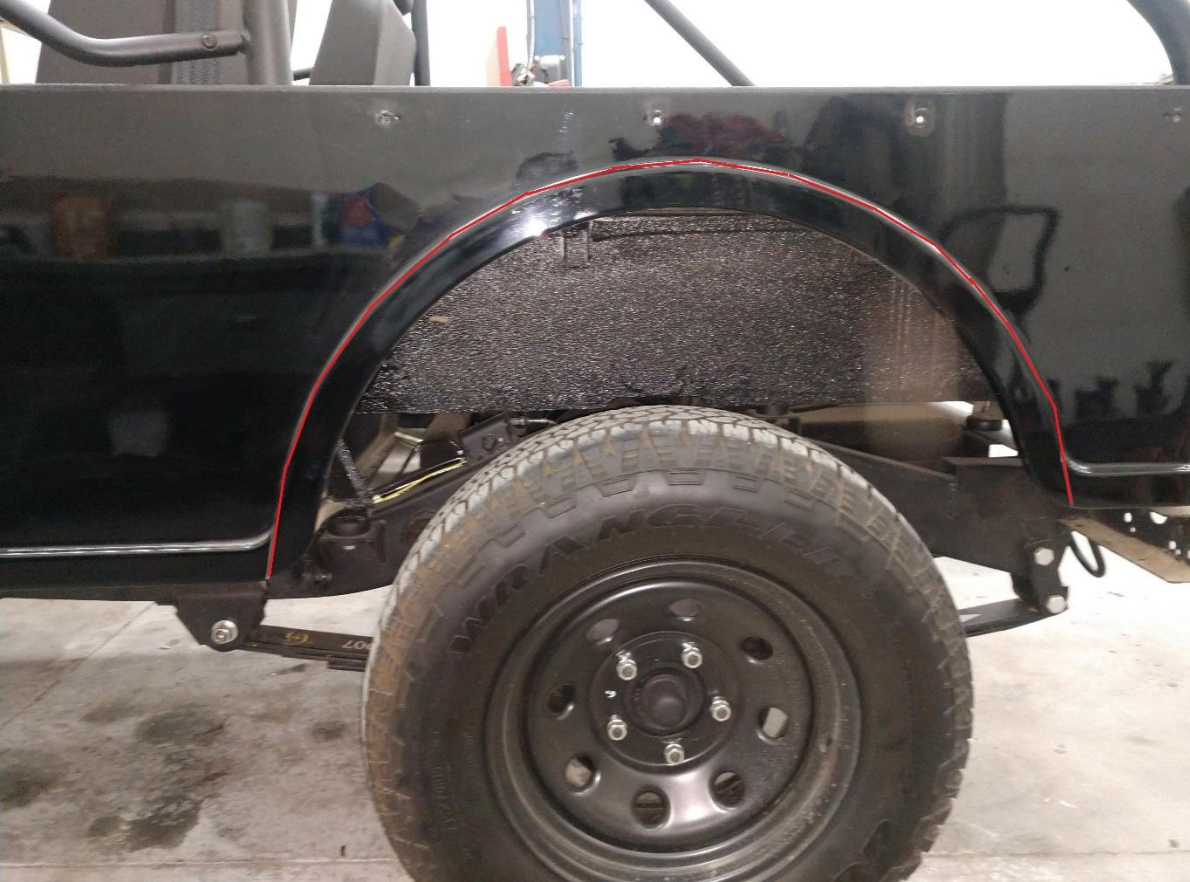

Mark the cut line around the rear fender flare

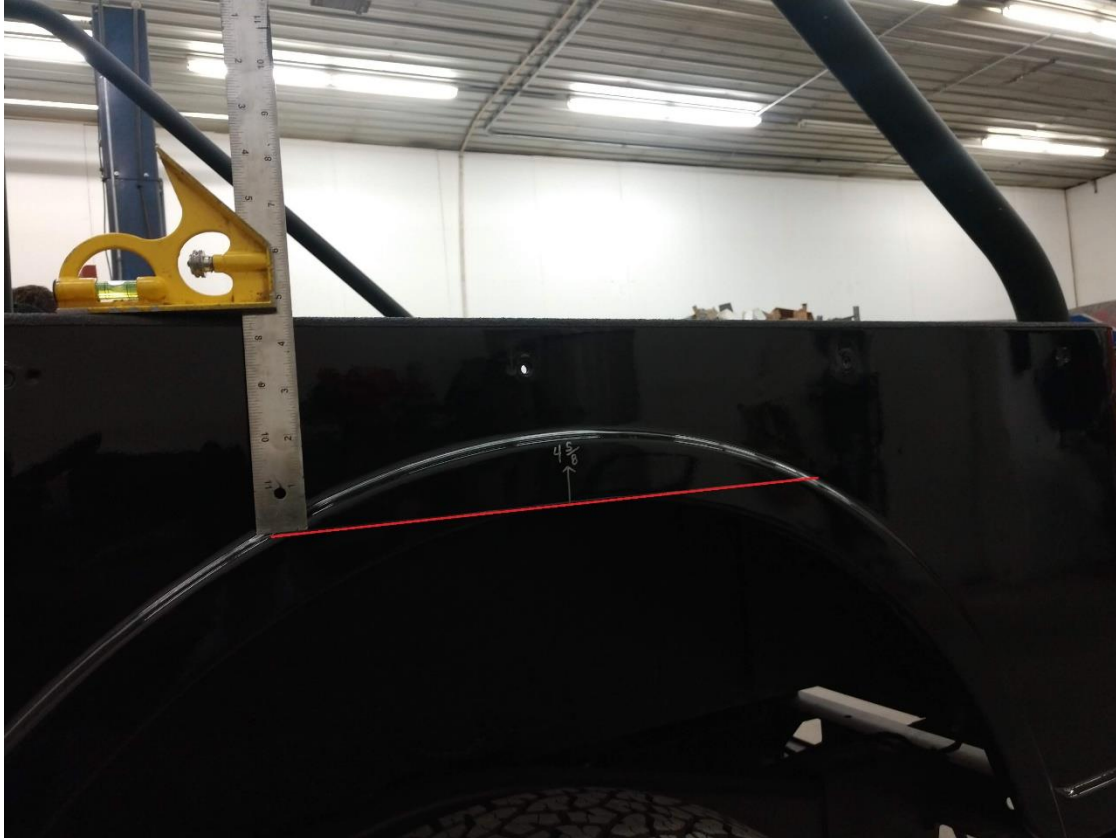

Mark 4 5/8” down from top of fender

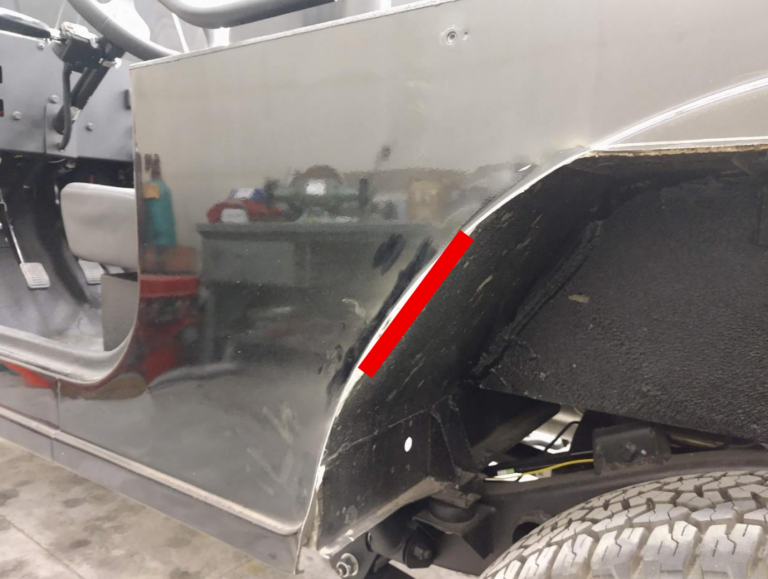

Cut marked area CAREFULLY! Cutting to far may damage the body (red area)

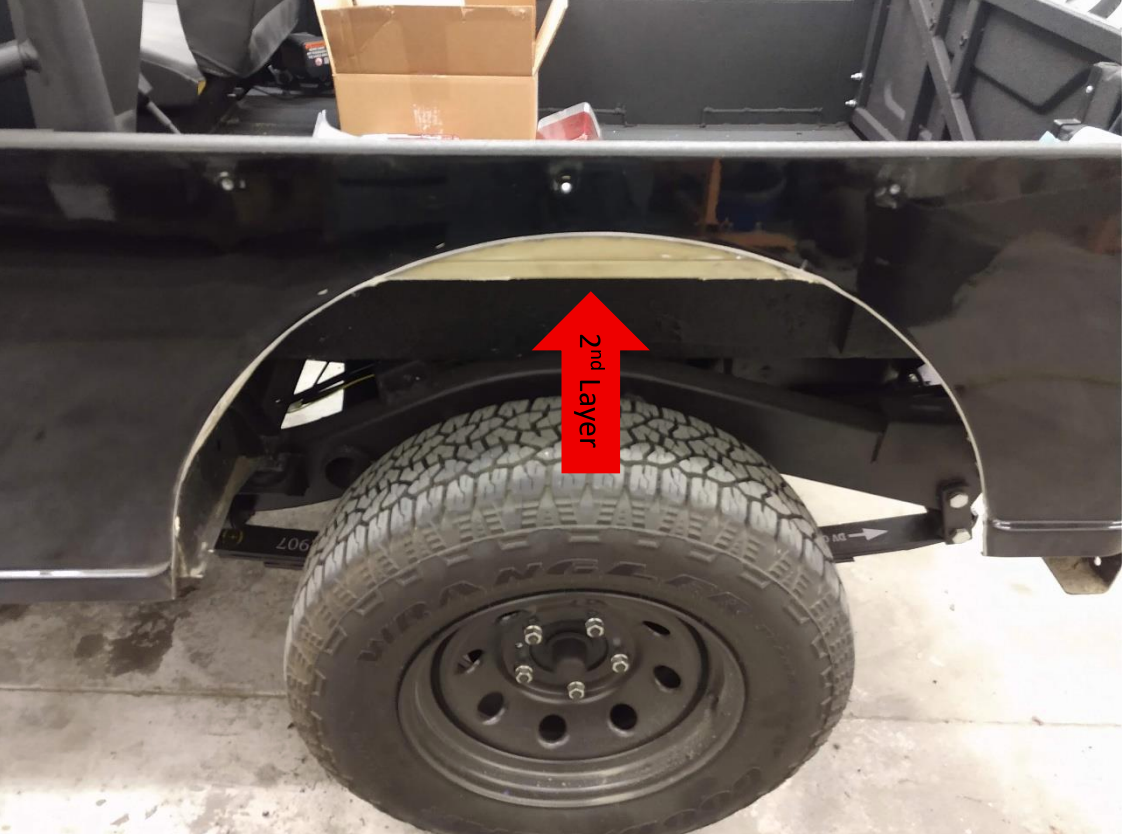

When cutting the top line there is a second layer, DON’T CUT THROUGH SECOND LAYER!

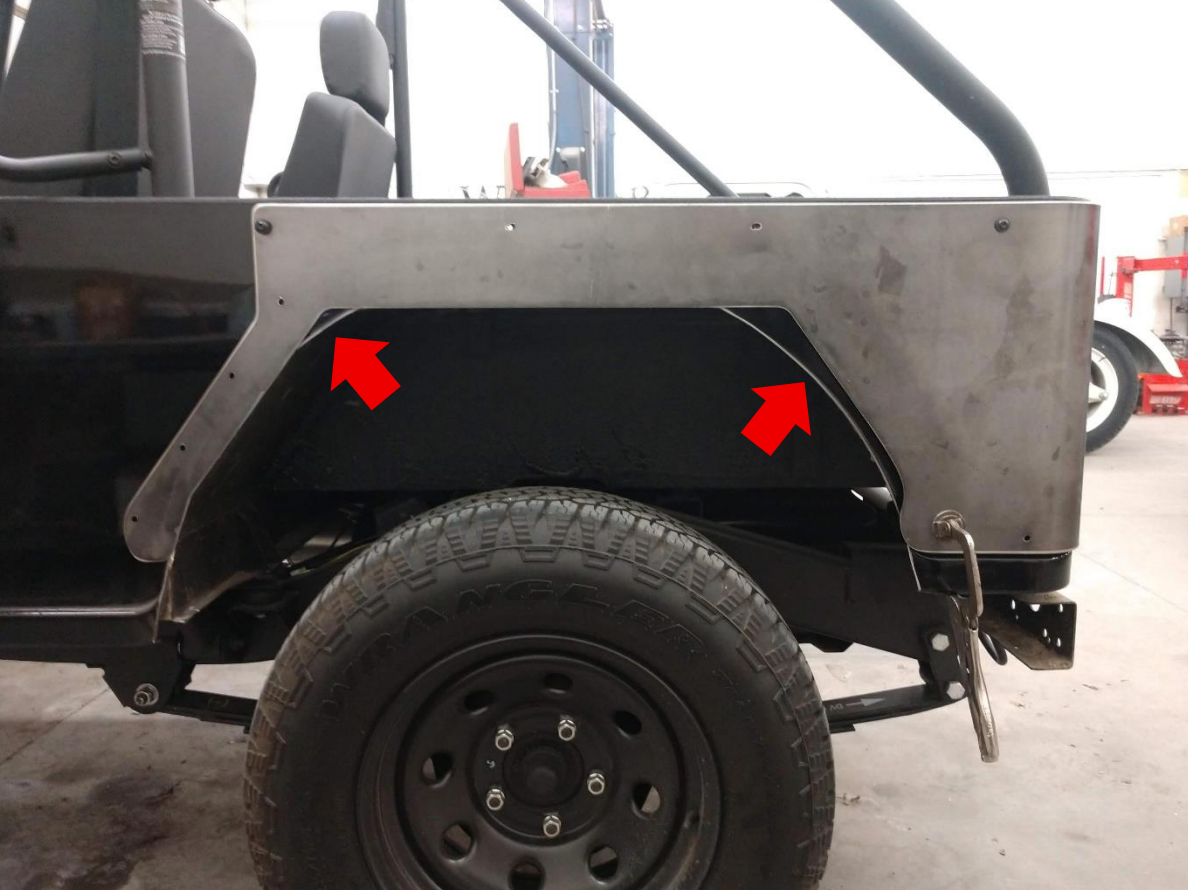

Fit quarter panel up to fender and trim areas to fit

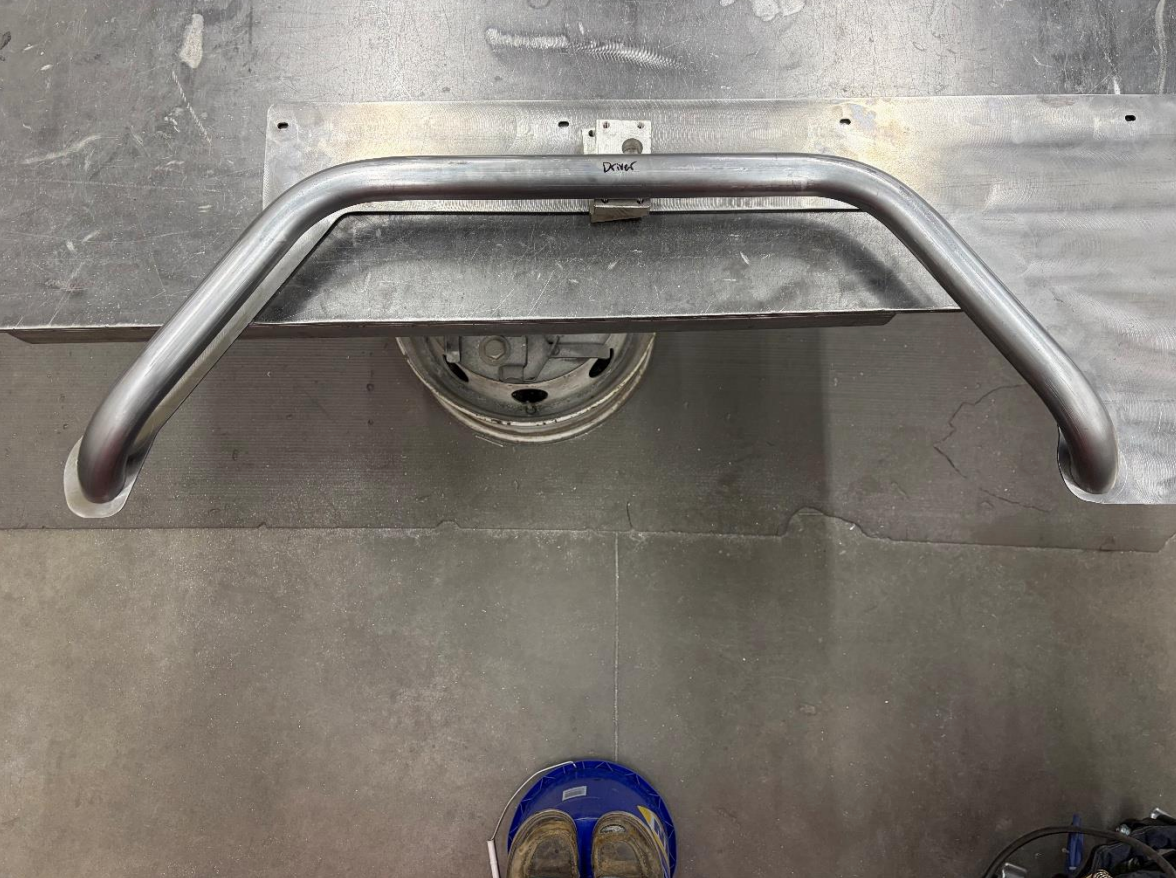

Take quarter panel down and align tube up with a 1 ½” space between tube and quarter panel

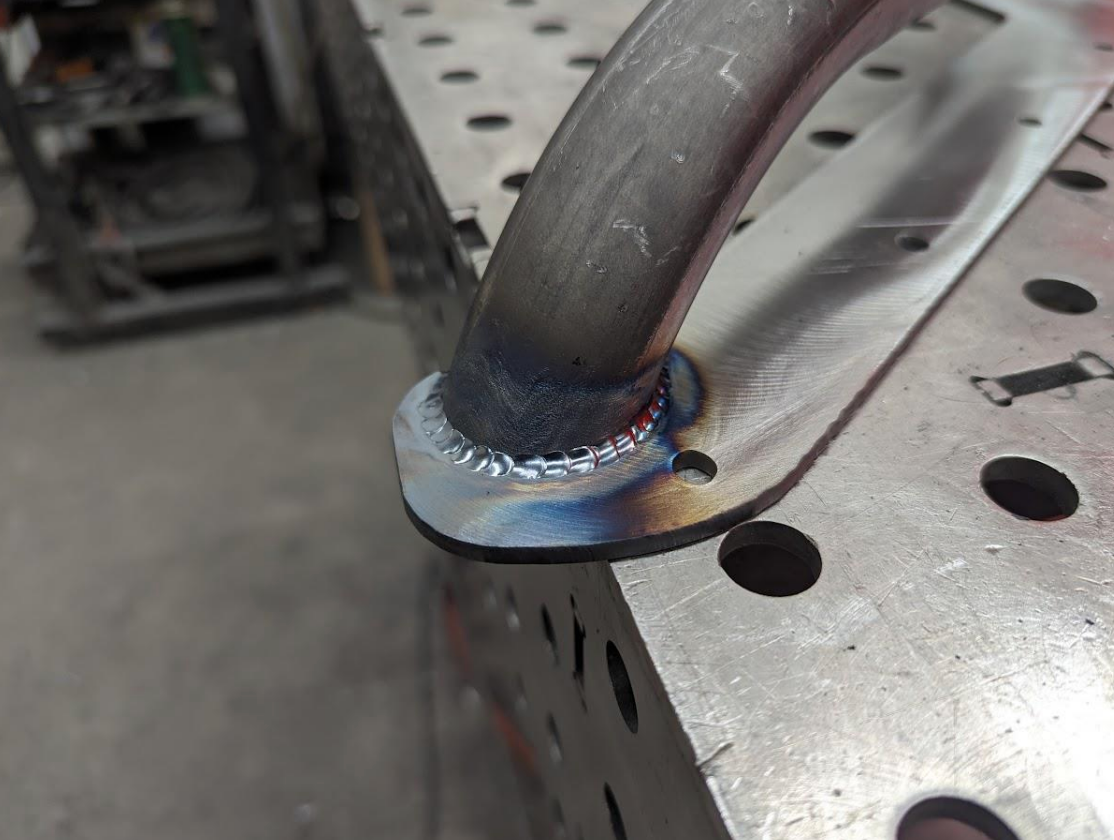

Weld tubes on

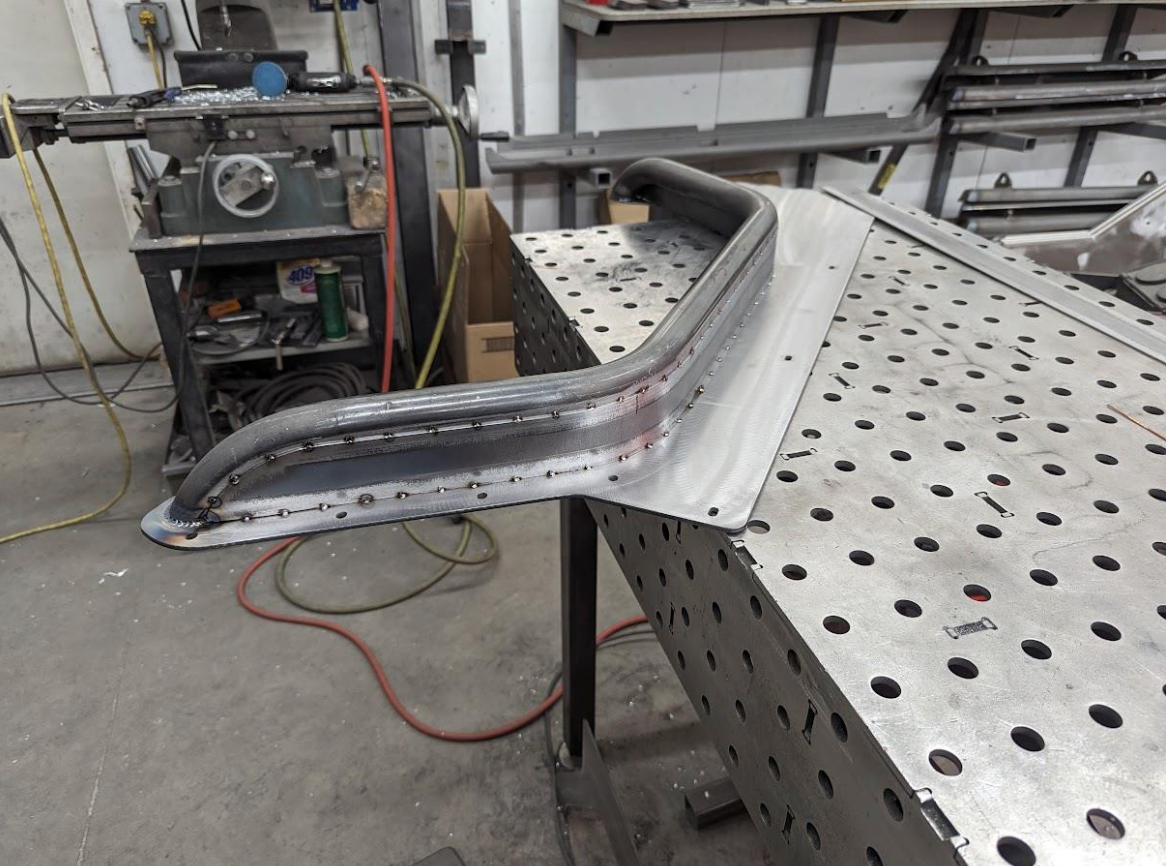

Start on one end and tack and form the strip around the tube

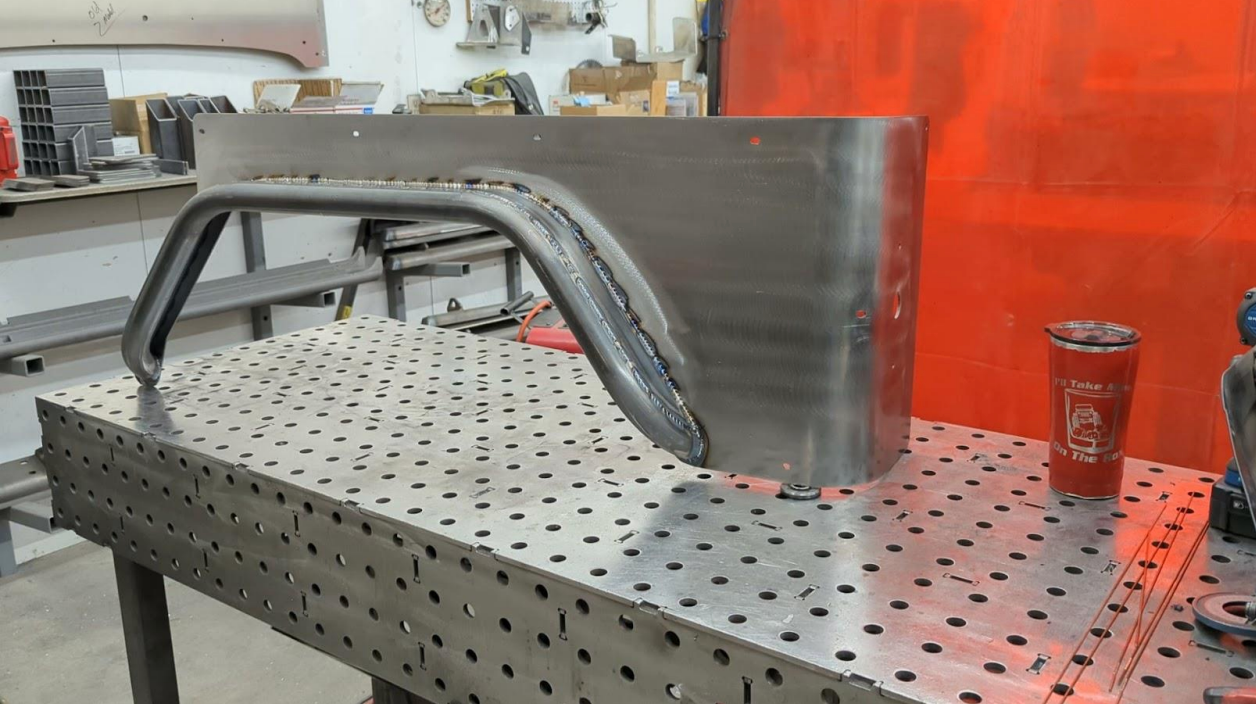

Once you have it fully tacked and formed, finish weld it as you like, tube fender as shown has been tig welded
