Fuel Tank Skid Installation Guide

*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.

ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE WORKING IN THE SHOP.

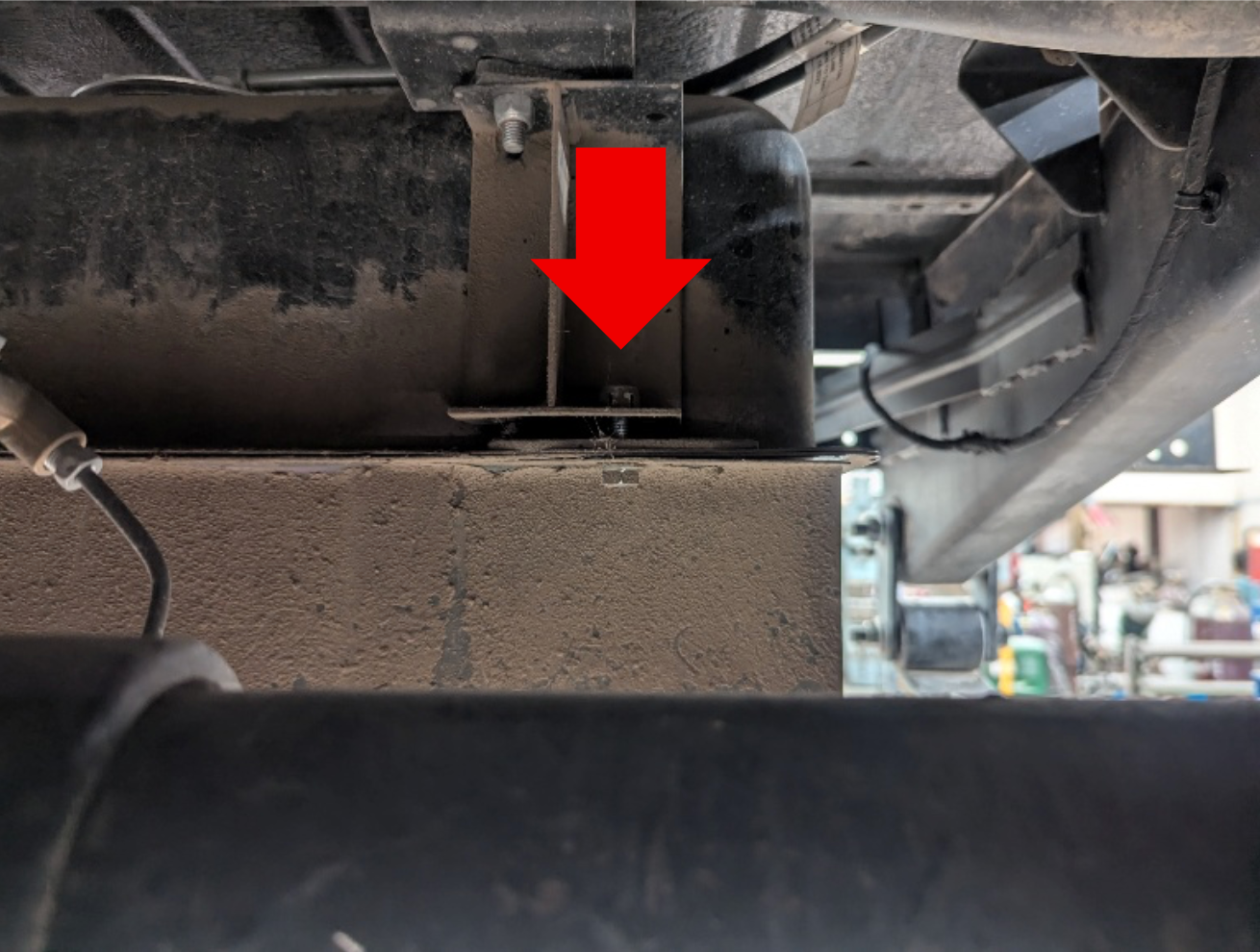

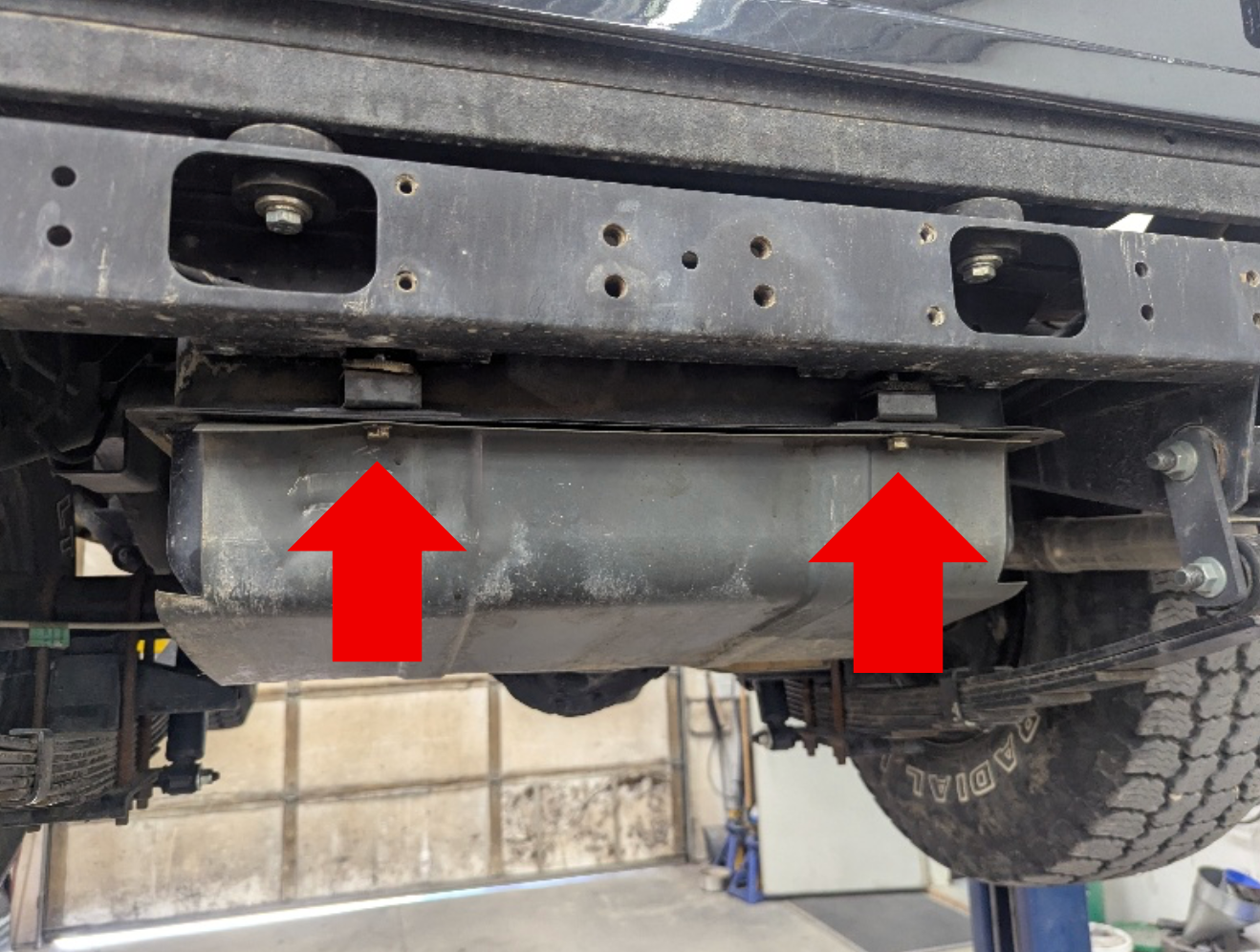

Begin with loosening the four bolts on the fuel tank. DO NOT TAKE THEM OUT!

Now, with the tank loose, use a yardstick to slide a motorcycle strap between the tank and the rock guard.

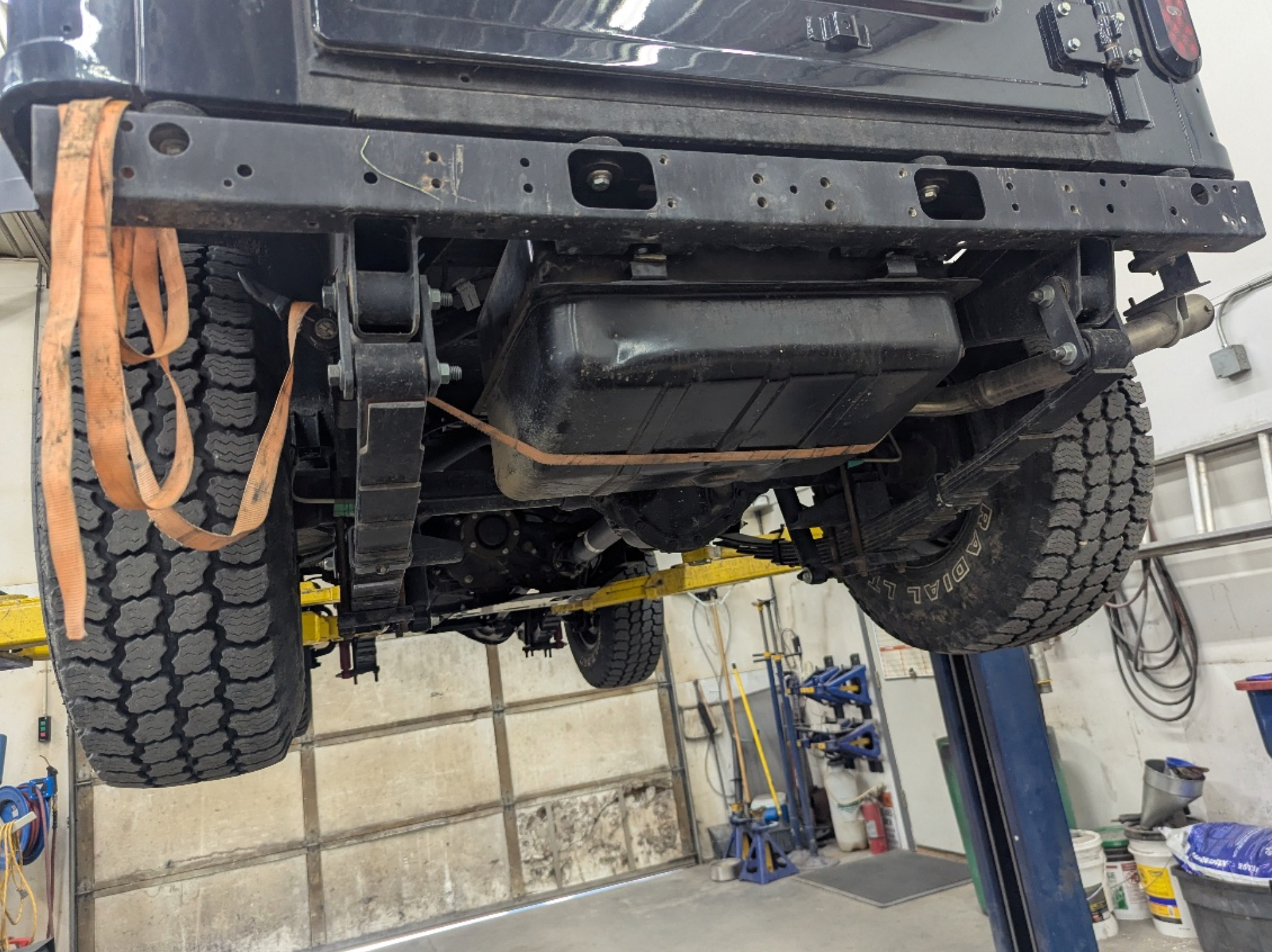

Use the strap to secure the tank to the frame and tighten to hold the tank in position.

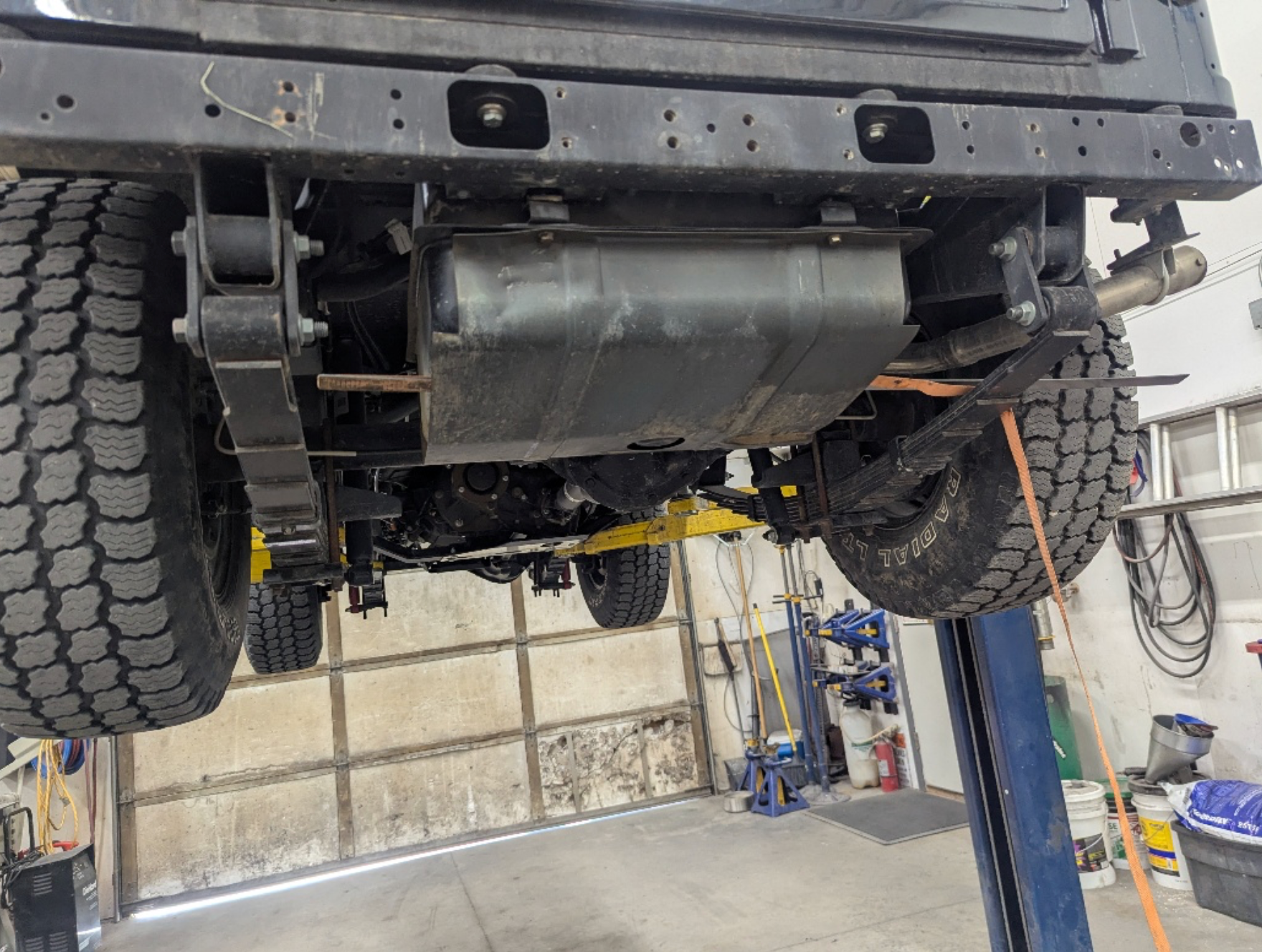

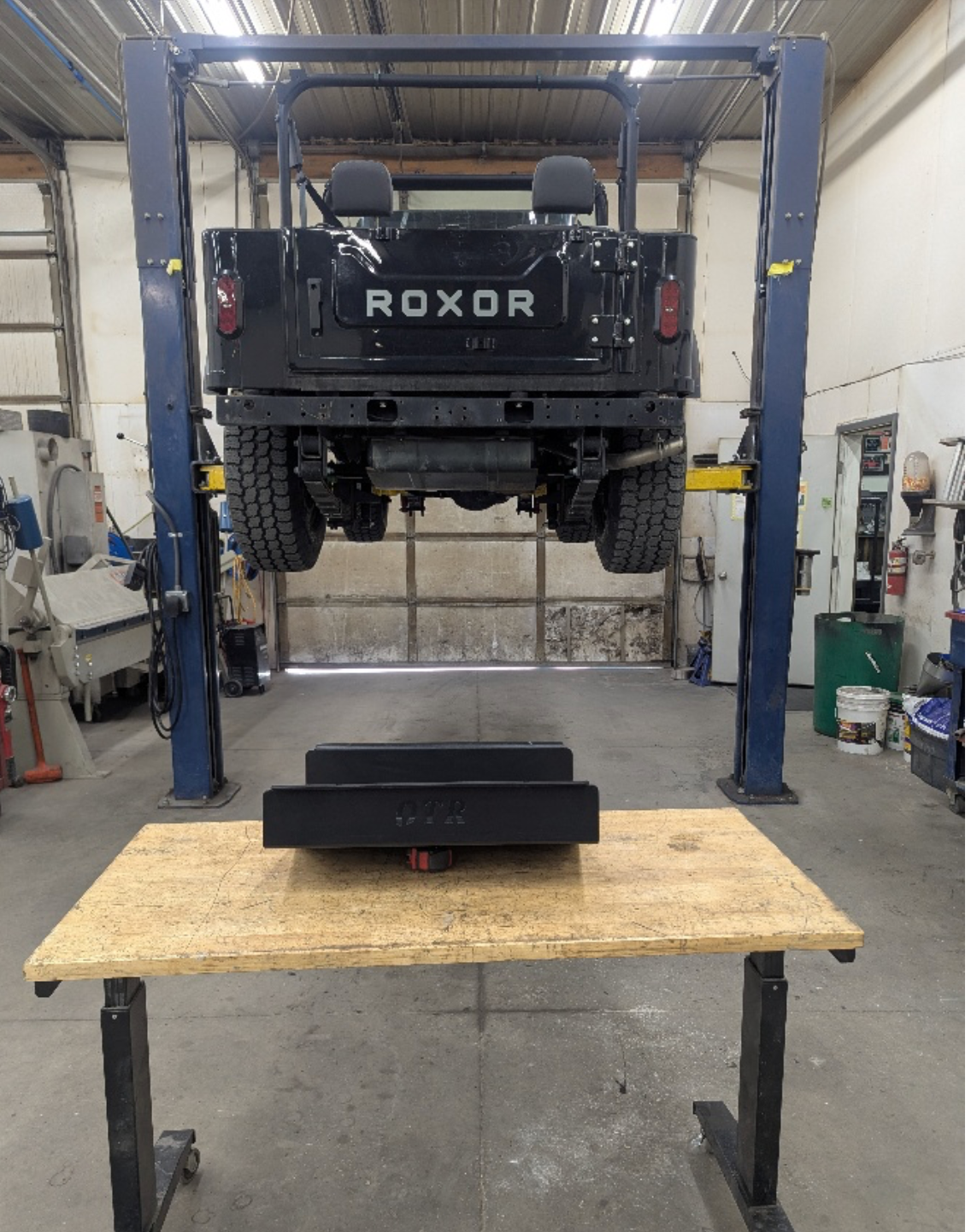

Once tank is secured remove the 4 bolts and the stock rock guard. Next take the OTR skid plate, hold into position and start the bolts. Do not tighten.

Most Popular

Bumpers, Sliders, Exterior Armor

Cargo Carriers & Trays

Doors, Tops, Enclosures, & Windshields

Engine & Performance Upgrades

Gears, Axles, & Drivetrain Upgrades

Engine & Performance Upgrades

Gears, Axles, & Drivetrain Upgrades

Grilles

Interior Accessories

Grilles

Interior Accessories

Scratch and Dent

Skid Plates & Component Armor

Suspension Upgrades

Wiring Harnesses and Lighting

2023-Current Mahindra Roxor HD 2.7L

2022 Mahindra Roxor 2.5L

2018-2020 Mahindra Roxor 2.5L

Login

Fuel Tank Skid Installation Guide

Begin with loosening the four bolts on the fuel tank. DO NOT TAKE THEM OUT!

Now, with the tank loose, use a yardstick to slide a motorcycle strap between the tank and the rock guard.

Use the strap to secure the tank to the frame and tighten to hold the tank in position.

Once tank is secured remove the 4 bolts and the stock rock guard. Next take the OTR skid plate, hold into position and start the bolts. Do not tighten.

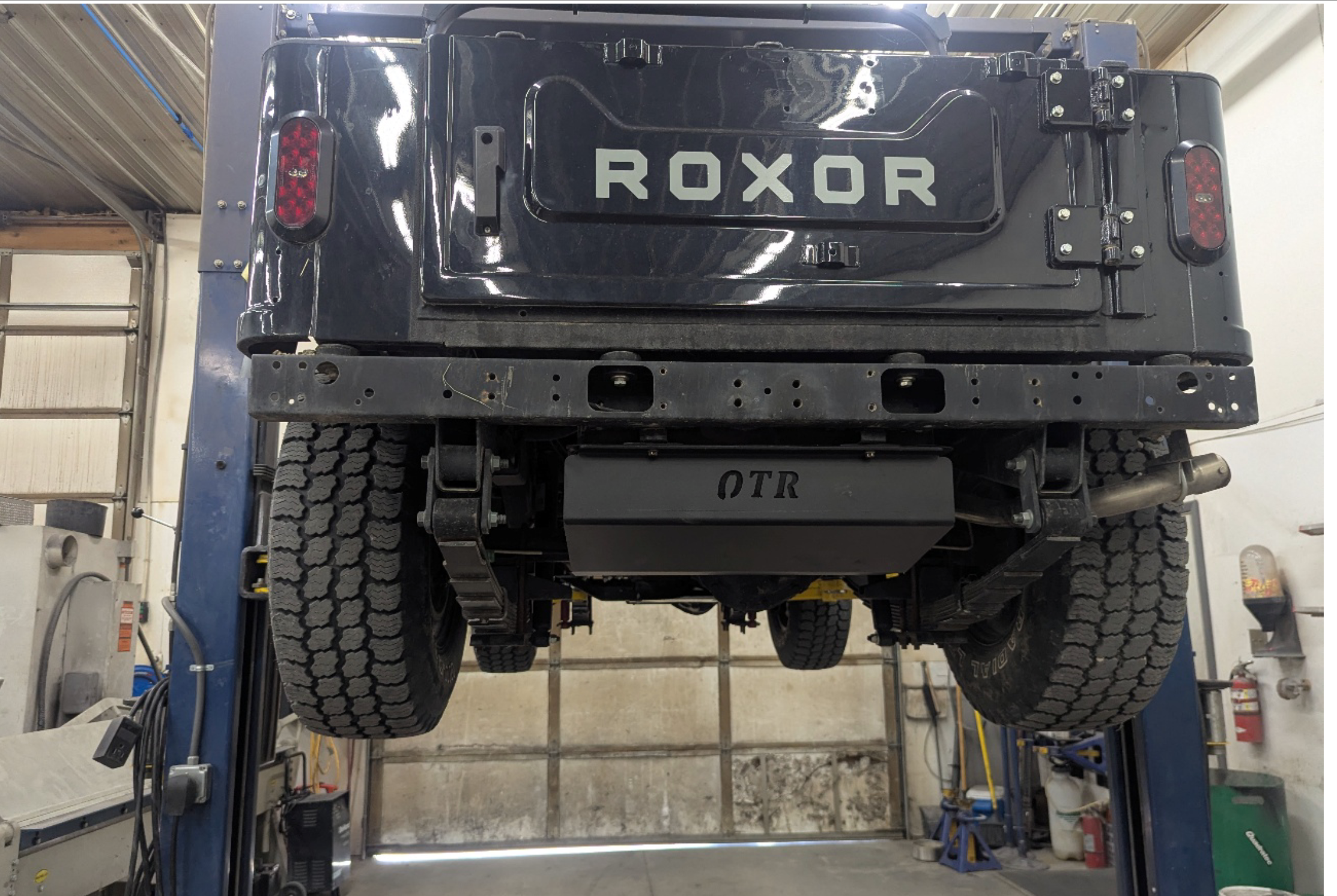

Pull the strap out and tighten all the bolts.
