*READ INSTRUCTIONS THOROUGHLY BEFORE BEGINNING. OTR IS NOT RESPONSIBLE FOR INCORRECT INSTALLATION OR LOCAL LAWS REGARDING AFTERMARKET ACCESSORIES. THE USER IS RESPONSIBLE FOR ALL LIABILITIES ASSOCIATED WITH THE INSTALLATION AND USE OF THIS PRODUCT.
ALWAYS UTILIZE PERSONAL SAFETY EQUIPMENT WHEN YOU ARE WORKING IN THE SHOP.
Tools Needed:

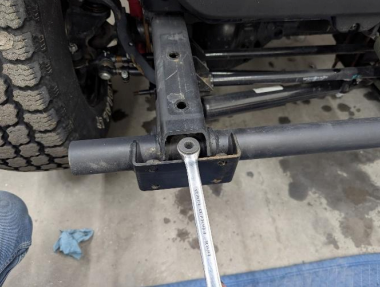

Step 1: Using a 13mm wrench, remove the original bumper bolts and carefully remove the front bumper.
Step 2: Using a T30 torx bit remove 4 screws securing the top plate and remove the plate. You will also need to remove 4 rubber expanding nuts from the frame.
Step 3: Using a ¾” box end wrench to hold the black flange nuts into the frame, install the angle brackets. (Slotted hole to the frame, vertical leg to the outside of the frame.)
Step 4: Use eight 10mm flange bolts and a 15mm socket to attach the bumper to the frame. (A second person is helpful) Install all of the bolts before tightening.
Step 5: Use the remaining ½” bolts to attach the gusset bars. Use a ¾” socket to tighten. (slotted end closest to the frame)
